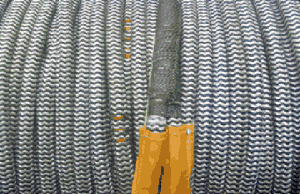

Plateena Ropes

 Plateena Ropes

Plateena Ropes


Plateena Ropes

Applications

  • Bridles for Aquaculture cages
  • Frame ropes
  • Winch Lines and headlines
  • Cod lines
  • Lifting
  • Door Legs
  • Slack Lines
  • Trawl Winch ropes as a replacement for SWR Ropes

Features / Benefits

  • Made from world’s strongest fiber – Dyneema®
  • Light weight
  • Very high breaking strength
  • Can replace steel wire ropes for the same diameter
  • Low stretch compared to steel Wire ropes
  • High abrasion resistance
  • Ropes are torque free and hence easy to handle
  • Rope floats on water
  • Low creep
  • Easy to splice
  • Polyester jacketed ropes give better heat resistance
  • Better UV stability
  • Excellent flex fatigue


General properties

  • Good chemical resistance
  • Zero water absorption
  • Excellent UV resistance

PRODUCT SPECIFICATIONS
Dia.
(mm)		 Dia.
( Inch )		 Weight
Kg/ 100 mtrs		 Weight
Lbs/ 100 feet		 Breaking Strength
( Kgf ) 		 Breaking Strength
(Lbs )
4 1/6'' 1.73 1.16 2600 5700
5 3/16'' 2.35 1.58 3000 6600
6 1/4'' 2.70 1.82 4400 9700
8 5/16'' 3.90 2.62 6500 14300
10 3/8'' 5.90 3.97 10000 22000
12 1/2'' 9.30 6.25 14000 30800
14 9/16'' 11.30 7.60 18500 40700
16 5/8'' 15.00 10.08 21500 47300
18 3/4'' 21.20 14.25 29500 64900
20 13/16'' 23.10 15.53 38000 83600
22 7/8'' 28.80 19.36 46000 101200
24 1'' 34.50 23.19 54000 118800
26 1-1/16'' 39.70 26.69 60000 132000


* the above specifications are indicative and are likely to change
