Garfil Ropes for Purse Seine |
 |
Applications:

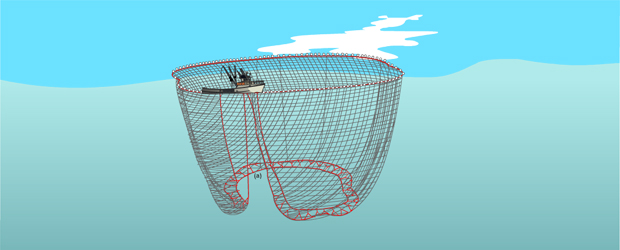

Specifically designed for Head rope, Foot rope and Purse Line in Purse Seine application
 |
Products
- Garfil Lonagreen
- Garfil Yellow
- Garfil Grey
Benefits
- Better abrasion resistance
- Good breaking strength
- Better grip
- Controlled elongation
- Better strength to weight ratio
- Uniform diameter
 |
 |
 |
||
| PRODUCT SPECIFICATIONS | |||
| Sr. No. | Nominal Diameter (mm) | Runnage (Mtrs/Kg) | Breaking Strength (Kgf) |
| 1 | 2.0 | 450 | 80 |
| 2 | 2.5 | 340 | 120 |
| 3 | 3.0 | 230 | 180 |
| 4 | 3.5 | 183 | 210 |
| 5 | 4.0 | 135 | 240 |
| 6 | 5.0 | 88.0 | 450 |
| 7 | 6.0 | 60.0 | 550 |
| 8 | 7.0 | 42.0 | 740 |
| 9 | 8.0 | 33.0 | 960 |
| 10 | 9.0 | 27.0 | 1150 |
| 11 | 10.0 | 22.00 | 1425 |
| 12 | 12.0 | 15.20 | 2030 |
| 13 | 14.0 | 11.00 | 2790 |
| 14 | 16.0 | 8.60 | 3500 |
| 15 | 18.0 | 6.80 | 4450 |
| 16 | 20.0 | 5.50 | 5370 |
| 17 | 22.0 | 4.50 | 6500 |
| 18 | 24.0 | 3.90 | 7600 |
| 19 | 26.0 | 3.30 | 8810 |
| 20 | 28.0 | 2.82 | 10100 |
| 21 | 32.0 | 2.20 | 12800 |
Tolerance On Weight:-
- 4 mm To 8 mm = +/-10%
- 10 mm To 14 mm = +/-8%
- 16 mm & Above = +/-5%
* the above specifications are indicative and are likely to change
