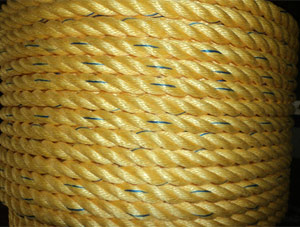

3 Strand Polypropylene Ropes |
 |
 |
Features / Benefits
|
| PRODUCT SPECIFICATIONS | |||
| Circ. in inches |
Dia (mm) |
Wt./Coil of 220 mtr. Kgs. |
Breaking Strength Kgf. |
| 0.50 | 4 | 1.63 | 240 |
| 0.75 | 6 | 3.67 | 600 |
| 1.00 | 8 | 6.60 | 1060 |
| 1.25 | 10 | 10.00 | 1560 |
| 1.50 | 12 | 14.50 | 2210 |
| 1.75 | 14 | 20.00 | 3050 |
| 2.00 | 16 | 25.50 | 3770 |
| 2.25 | 18 | 32.50 | 4810 |
| 2.50 | 20 | 40.00 | 5800 |
| 2.75 | 22 | 48.50 | 6960 |
| 3.00 | 24 | 57.00 | 8130 |
| 3.25 | 26 | 67.00 | 9410 |
| 3.50 | 28 | 78.00 | 10700 |
| 3.75 | 30 | 89.00 | 12220 |
| 4.00 | 32 | 101.00 | 13500 |
| 4.50 | 36 | 129.00 | 16930 |
| 5.00 | 40 | 158.00 | 20500 |
| 5.50 | 44 | 194.00 | 24640 |
| 6.00 | 48 | 229.00 | 28610 |
| 6.50 | 52 | 268.00 | 33110 |
* the above specifications are indicative and are likely to change
